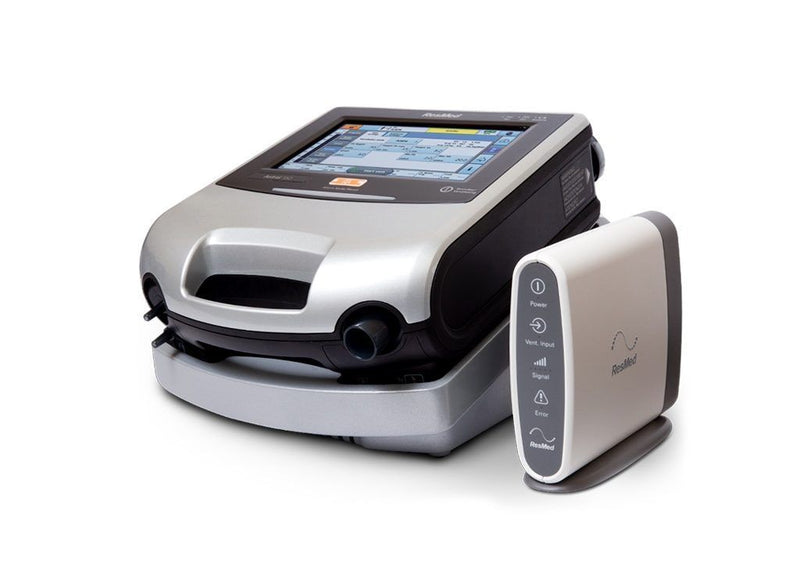

Astral 150 Portable Ventilator
Buy with confidence.Contact our experts today.
Description
ResMed Astral 150 provide personalized care every step of the way. With both invasive and non-invasive options, they offer a lightweight design, exceptional battery life and adaptive technologies to provide greater mobility and peace of mind. Offers the same functionality as Astral 100 as well as a double-limb circuit and Fi02 monitoring.
ResMed Astral is one of the most advanced life support ventilators in respiratory care, proven to reach a stable state of ventilation in significantly less breaths than Philips Trilogy. Provide optimal care for patients with a wide range of respiratory disorders. Astral makes personalized ventilation easier than ever and adjusts to the changing conditions and breathing needs of patients with these innovative technologies.
Features
- Easy operation
- 16-hour battery life with external battery
- ResMed Connectivity Module (RCM)
- Impressive power-to-weight ratio
- Responsive algorithms for adaptive care
- FiO2 monitoring and double limb circuit capabilities
Product Specifications and Resources
| Length | 11.22" |
| Width | 8.46" |
| Height | 3.66" |
| Weight | 7.05 lbs |
| Battery Type | Lithium-Ion |
| Internal Battery Power | 14.4 V, 6.6 Ah, 95 Wh |
| Sound Power Level | 43 ± 3 dBA |
| Sound Pressure Level | 35 ± 3 dBA |
| Single Circuit with Leak | Yes |
| Single Circuit with Valve | Yes |
| Double Circuit | Yes |
| Manual Breath | Yes |
| Sigh Breath (recruitment) | Yes |
| Apnea Ventilation | Volume and Pressure |
| Preset Programs | 4 |
| Delivered Pressure (cm H2O) | 2 - 50 (leak circuit), 0 - 50 (valve circuit) |
| Delivered Tidal Volume (cm H2O) | Adult - 100 to 2500 mL, Pediatric - 50 to 300 mL |
| Respiratory Rate | Adult - Off, 2 to 50 bpm & Pediatric - Off, 5 to 80 bpm |
| SpO2 Monitoring | Optional |
| FiO2 Monitoring | Standard |
| On Screen | 30 days of summary data, Real-time pressure and flow (25 Hz) |
| ResScan (via download) | 365 days of summary data, 7 days of detailed data |
| AirView (RCM required) | 365 days of summary data, 7 days of detailed data |
| ResMed Astral 150 Ventilator | |
| Power cord | |
| Power supply unit | |
| Carrying Case | |
| Flash Drive |
